Zodiac Robotics srl
Delta robots
In a line with 12 Delta robots (4 axes, 75 cycles/min) and 6 vision systems, ctrlX OS controls 48 total axes. Robots pick 4 product types from moving conveyors and place them in trays with specific order, position, and orientation, coordinating vision, HMI, and machine logic.
Beverage application
In a beverage application, a Delta robot with a 1600 mm work area and 60 kg payload moves up to 3 water packs at 50 cycles/min. ctrlX OS ensures smooth motion with optimized jumps, avoiding acceleration spikes that would otherwise limit overall system performance.
Advantages
- Seamlessly integrated with ctrlX OS devices and ctrlX AUTOMATION components: optimized automation performance.
- Built-in cable and signal management: increased reliability and reduced wear.
- High payload capacity: handles loads exceeding 60 kg.
- Fully customizable: tailored to each application and customer needs.
- Minimal maintenance: robust design ensures long-term reliability.
Target Groups
- Machine Builder
- System Integrator
Topology

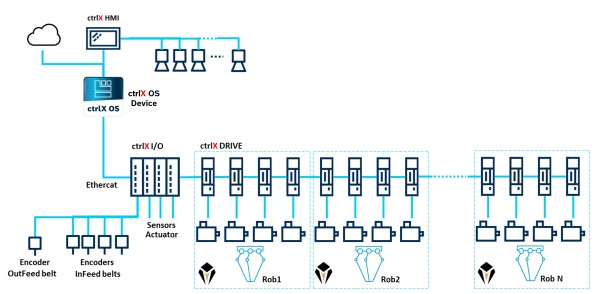

The ctrlX OS device (for e. g. control platform ctrlX CORE) is the central hub of the system, enabling seamless integration and control. It connects to the operator interface, a third-party vision system that assigns missions to robots, and manages all Delta robots (each with 4 axes). Additionally, it controls the motion of various conveyors equipped with brushless motors and encoders, while the ctrlX I/O interfaces handle all machine edge signals and actuators. The system also connects to the web, supporting Industry 4.0 applications and remote control for enhanced operational efficiency.
About Zodiac Robotics
Zodiac Robotics is a leading developer and manufacturer of controller-independent Delta robots, designed to meet the highest standards in industrial automation. With built-in cable and signal management, exceptional customization, and support for heavy payloads, Zodiac Robotics delivers reliable, efficient, and scalable solutions tailored to customer needs. The robots are suitable for a wide range of industries, from packaging to automotive, ensuring seamless integration with ctrlX OS and other automation platforms.
